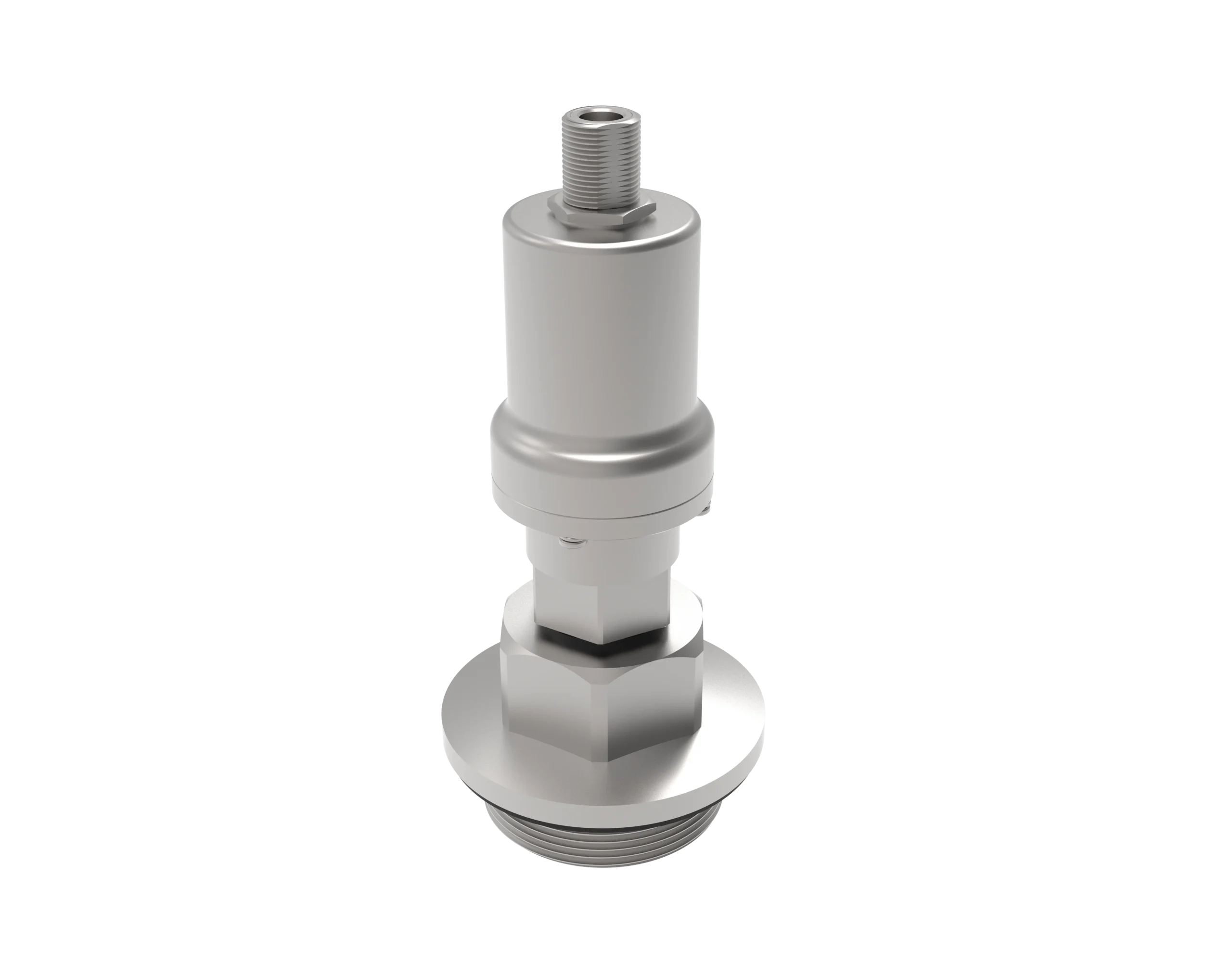

BSENS

BSENS

Bushing Sensor for Improved Transformer Reliability to Avoid Bushing Failure.

KEY FEATURES

  • Reliable and robust product
  • Measures leakage currents of fundamental harmonics
  • Variants are available for monitoring up to 6 bushings on three phase transformers
  • It measures High Frequency PD signals
  • Based on industry standard method
  • Most accurate condition analysis
  • Custom designed for various bushing taps

BSENS continually perform online condition monitoring of transformer bushings through regular time-based diagnostics. Bushing Sensors for Tan _ and Capacitance monitoring are based on measuring Leakage Current in the range of 1mA to 200mA which also additionally provides HF signals between 100 kHz – 25 MHz for PD monitoring.

  • Condensing/ Capacitive type bushings
  • Transformer Bushings
  • Breaker Bushings
  • Easy installation and commissioning
  • Flexible configuration options to meet customer expectations
  • Generates highly accurate data
  • Early incipient fault detection ensures reliable operation and reduces supply outages
TECHNICAL SPECIFICATIONS
Transient Voltage Protection
Up to 1500 KV Bushings
Bushing Tap Earthing Protection
Double Protection against any loss to grounding connection
ELECTRICAL SPECIFICATIONS
Sensor Output
Leakage Current = 1mA to 200mA Partial Discharge: 100 kHz to 25 MHz
Recommended Cable
RG213 or RG58
Measured Parameters
Leakage Current and Partial Discharge
MECHANICAL SPECIFICATIONS

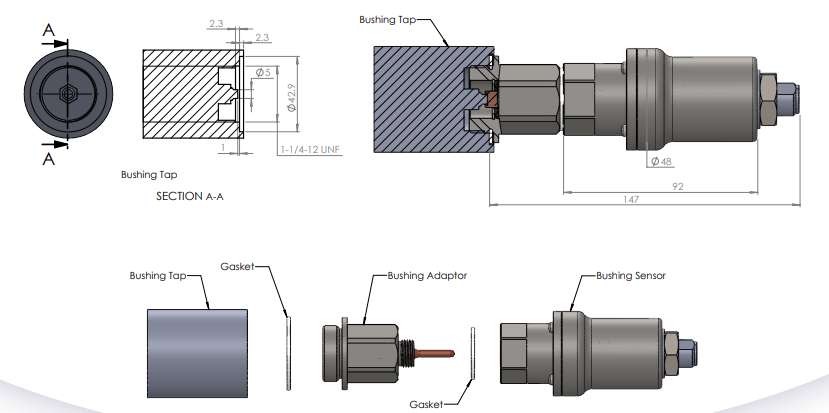

Custom designed for various bushing taps MECHANICAL
Operating Temperature
-60°C to +95°C
ENVIRONMENTAL SPECIFICATIONS
Storage Temperature
-40°C to +85°C
IP Rating
IP 66 (Protection against moisture ingress)
Humidity
95% Relative Humidity
