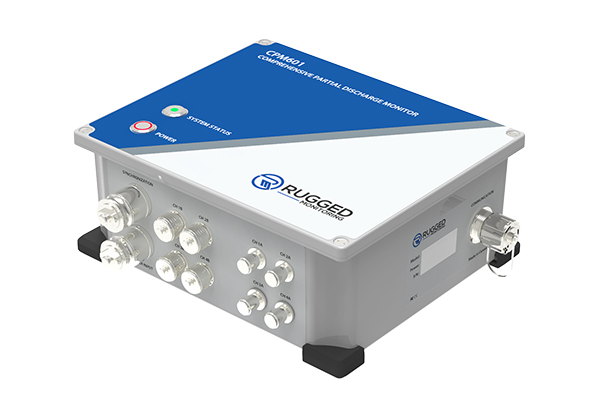

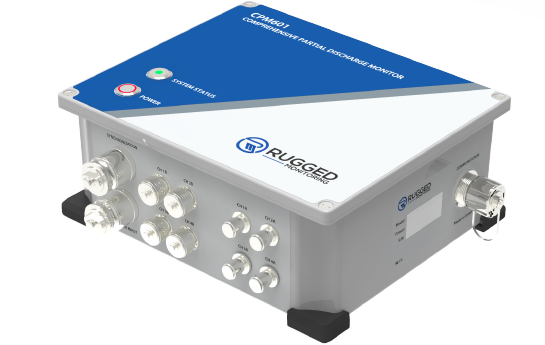

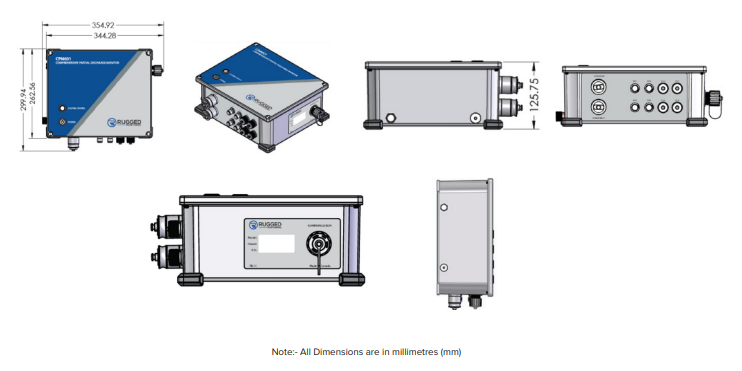

CPM601-C

CPM601-C

CPM601-C is designed precisely to perform continuous PD measurements in dual frequency ranges; 0.01MHz – 100MHz as well as 200 MHz – 3000 MHz. With the help of advanced electronics embedded inside CPM601.

KEY FEATURES

  • Rugged, compact design
  • Operates in Dual Frequency Ranges; 0.01MHz – 100MHz as well as 200 MHz – 3000 MHz
  • Compatible with Acoustic, Ultrasonic, HFCT, TEV, Coupling Capacitors as wells as UHF Sensors
  • An interactive and comprehensive software PD Connect for reliable PD measurement and analysis
  • Gigabit ethernet copper Cat5e communication link between monitor and laptop
  • Optional rugged laptop with installed software suite

CPM601-C is designed precisely to perform continuous PD measurements in dual frequency ranges; 0.01MHz – 100MHz as well as 200 MHz – 3000 MHz. With the help of advanced electronics embedded inside CPM601, now a user can perform PD measurement using variety of sensors without the need of using external frequency down converters.

 With 4 HF and 4 UHF channels monitor presents All-in-One solution to perform PD measurements using Acoustic, Ultrasonic, HFCT, TEV, Coupling Capacitors as wells as UHF Sensors on all assets, GIS, Power Transformers, Rotating Machines and Power Cables. Compact size and rugged enclosure and electronics make it portable, easy to carry and enabling the user to perform PD measurements with less hassle.

  • Power transformers
  • Rotating machines
  • AIS/ GIS Switchgears
  • Cables and their accessories
  • HV AC testing (Resonant test set, VLF, OWTS)
  • Multiple point PD monitoring
  • Rugged and Robust Design
  • Enhanced noise rejection and Real time denoising
  • Software packed with useful tools for reliable and interactive PD measurements
  • Strong recording and analytics
  • Gigabit ethernet communication between monitor and laptop
  • Customizable according to customer specific applications
  • Suitable for Online or Offline PD measurements

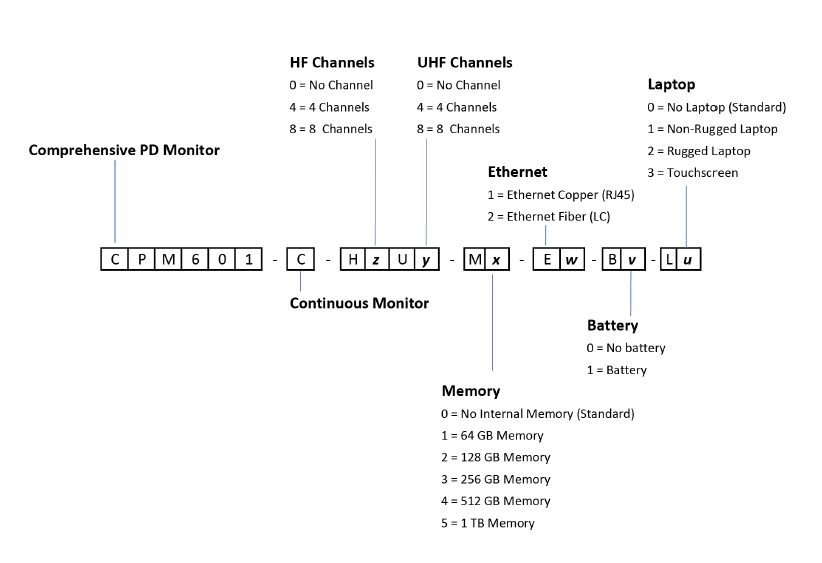

TECHNICAL SPECIFICATIONS
INPUT CHANNELS
Channels
8 Multiplexed (4x HF and 4x UHF)
Sampling Rate
250 MS/s
Amplification
up to 50 dB, software selectable
Filtering
Software configurable band pass filters
HF CHANNELS
Bandwidth
0.01 - 100 MHz
Sensitivity
-50dBm
Dynamic Range
50dB
UHF CHANNELS
Bandwidth
200 MHz - 3000 MHz
Sensitivity
-80 dBm
Dynamic Range
70 dB
DATA TRANSFER
High Resolution (pulses data on simultaneous channels)
10,000 pulses per second for 4 simultaneous channels
Low Resolution (pulse amplitude on simultaneous channels)
50,000 pulses per second for 4 simultaneous channels
Transfer Rate
400 Mbps (depending on operating system and connection)
MEMORY
SSD
up to 1 TB (Optional)
COMMUNICATION LINK
Type
Ethernet Copper
Cable
Cat5e
SYNCHRONIZATION INPUTS
2 Inputs, software
Internal
Selectable
External
IP RATING
IP 65
TEMPERATURE RATING
Ambient
-30 ÌŠC- 60 ÌŠC
Storage
-40 ÌŠC - 85 ÌŠC
POWER RATING
Input Power
240-100Vac, 45W
LAPTOP
Rugged laptop (Optional)
Internal
