HPM601-C

HPM601-C

Continuous High Frequency Partial Discharge Monitor

KEY FEATURES

  • Rugged, simple design
  • 4 synchronous input channels allow 3 phase synchronous measurement with additional external synchronous channel to enable the use of other type of sensor
  • Rugged Enterprise, a complete software suite for analyzing the data and generating reports
  • Indicator LEDs to alert in case of PD alarm or warning
  • Gigabit ethernet copper Cat5e or multimode fiber communication link between monitor and server

HPM601 is a High Frequency Partial Discharge (PD) monitoring module that enables HV asset owners to keep monitoring PD due to insulation defects 24/7. System can also be used to perform offline PD measurement during HV AC testing. Compact size and rugged enclosure of monitor make it easy to get installed and get started.  The solution can communicate with its user over IEC61850 or using Rugged Monitoring proprietary Rugged Enterprise/ RMEYE software suite.

System simple design enables it to get interfaced to third party protocols. Monitor is capable of transferring data directly to software installed on Server or data can be temporarily stored in the device in case of communication loss between server and monitor.

  • PD measurement during HV AC testing (Resonant test set, VLF, OWTS)
  • Multiple point PD monitoring
  • Cables and their accessories
  • Rotating machines
  • AIS/ GIS switchgear/switchboards
  • Power transformers
  • Robust, rugged design
  • Each device is rigorously tested
  • Customizable according to customer specific applications
  • Suitable for Online or Offline PD measurements
  • Software packed with useful tools for reliable and interactive PD measurements
  • Robust recording and analytics
TECHNICAL SPECIFICATIONS
INPUT SIMULTANEOUS CHANNELS
Channels
4 simultaneous channels 8 & 12 channel options available with multiplexer
Sampling Rate
250 MS/s
Bandwidth
0.01-100 MHz
Amplification
up to 50 dB, software selectable
Filtering
Software configurable band pass filters
MEMORY
SSD
up to 1 TB (Optional)
DATA TRANSFER
High Resolution (Pulses data on simultaneous channels
10,000 pulses per second for 4 simultaneous channels
Low Resolution (Pulse amplitude on simultaneous channels)
50,000 pulses per second for 4 simultaneous channels
Transfer Rate
400 Mbps (depending on operating system and connection)
COMMUNICATION LINK
Type
Ethernet Copper or Fiber (100/1000 BASE-T)
Connector
RJ45 or LC Multi-mode
TEMPERATURE RATING
Ambient
-30°C - 60°C
Storage
-40°C - 85°C
POWER RATING
Input Power
240-100Vac, 45W
SYNCHRONISATION INPUTS
2 Inputs, software
Internal & External
IP Rating
IP65

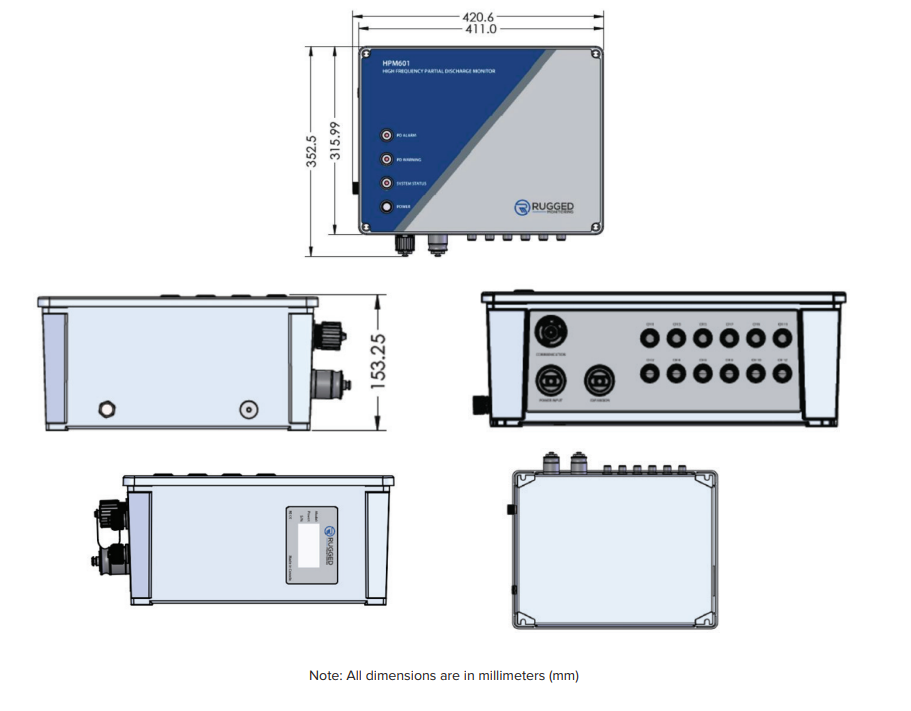

DIMENSIONS
260mm(L)x310mm(W)x120mm(H)
SOFTWARE
Rugged Enterprise
