HSENS-CC

CAPACITIVE COUPLER PARTIAL DISCHARGE SENSOR

High Dielectric Capacitive Coupler for Reliable PD Monitoring

Rugged Monitoring’s Capacitive Coupler is a highly adaptable partial discharge sensor engineered for precise PD monitoring and testing across various electrical assets, including transformers, generators, motors, and switchgear.

Features
  • Electrical durability and thermal resilience
  • Operation free from noise and corona effects
  • Designed for high-temperature, high-voltage applications
  • Excellent insulation properties and mechanical strength
  • Superior arc resistance properties
  • Noise free from PD
Benefits
  • Enhanced Accuracy
  • Minimal Operational Disruption
  • Safe and Easy Installation
  • Versatility in Installations
  • Customizable for Various Applications
Applications
  • Generator
  • Motor
  • Switchgear
  • Transformer dry-type transformer
Technical specifications
Capacitance

1nF, 1.2nF, 1.5nF, 2nF, 500pF, 80pF (Custom designed – Optional)

PD Sensitivity

1pC

Line Voltage Rating

6kV, 11kV, 16kV, 30kV, 45kV

Line Voltage Frequency

50Hz – 60Hz

Capacitor Type

Mica and Ceramic

Install Position

Installed on the study cast aluminum enclosure and connected to the Busbar

Body Material

Epoxy Resin

Output Connection Type

TNC-Type connector; Customized option available

Vibration Testing

Suitable for Generator, Motor and Transformer applications

Withstand Voltages

20kV, 35kV, 70kV, 120kV

Signal Cable

Very low attenuation Coax cable, RG58

Ambient (Operating Temperature)

-40 °C to +85 °C

Storage Temperature

-40 °C to +85 °C

Operating Humidity

95% humidity at 50 °C

Dimensions (in mm)

As per Line Voltage rating;
from 125(W) x 95(D) x 90(H) to 250(W) x 165(D) x 450(H)

Weight

As per Line Voltage rating; from 0.5Kg. to 5.5Kg

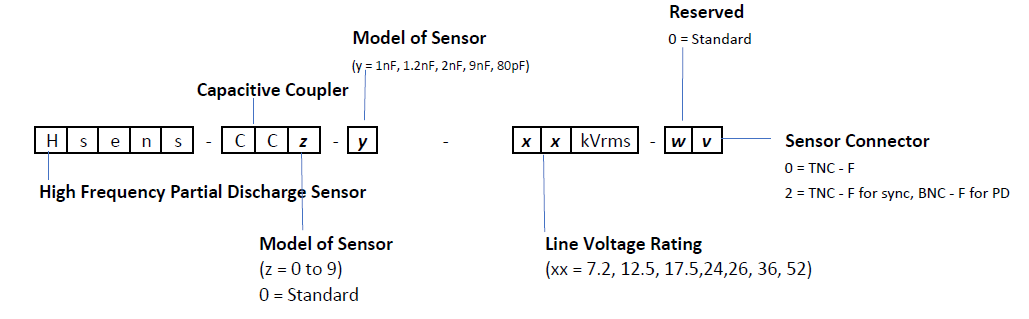

Ordering Code

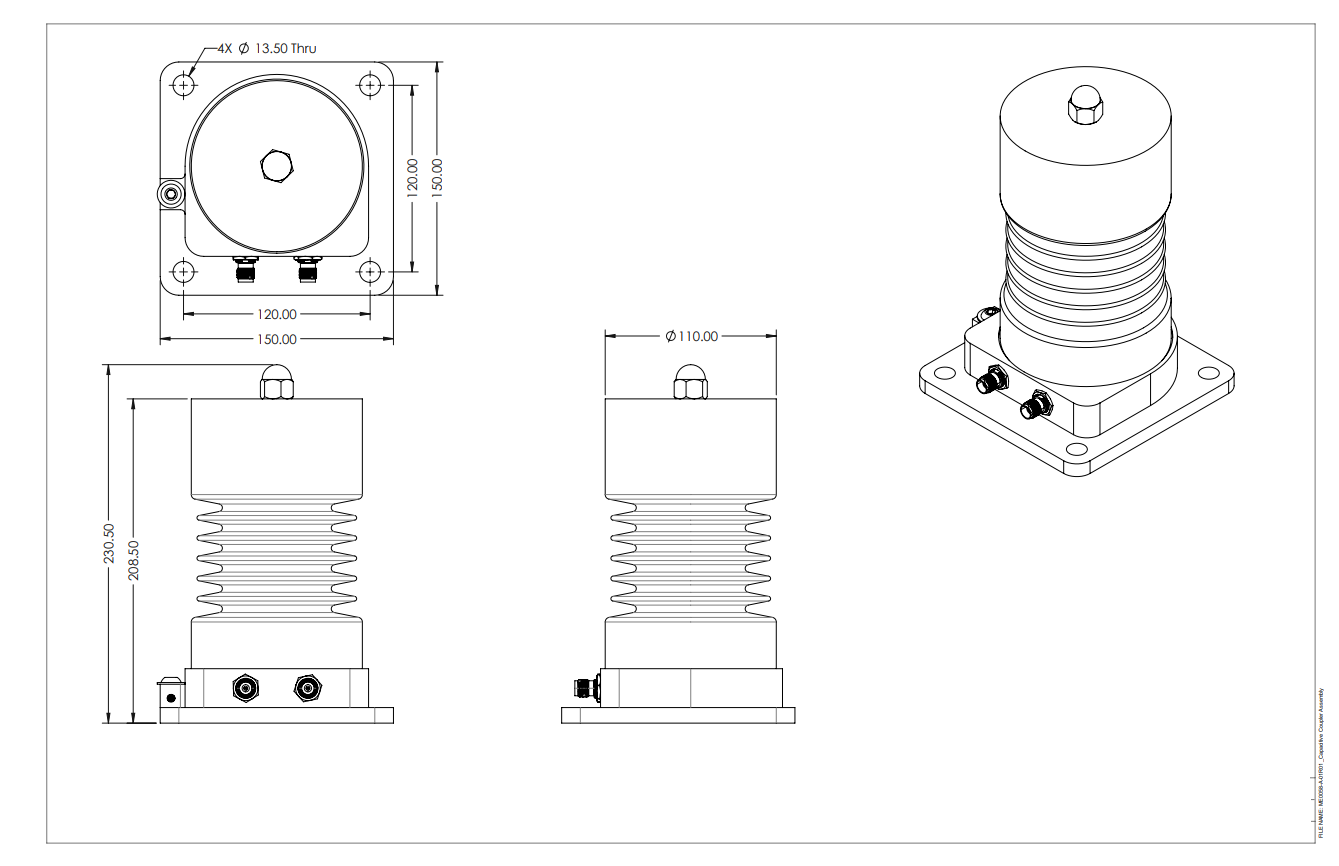

Product Drawing
