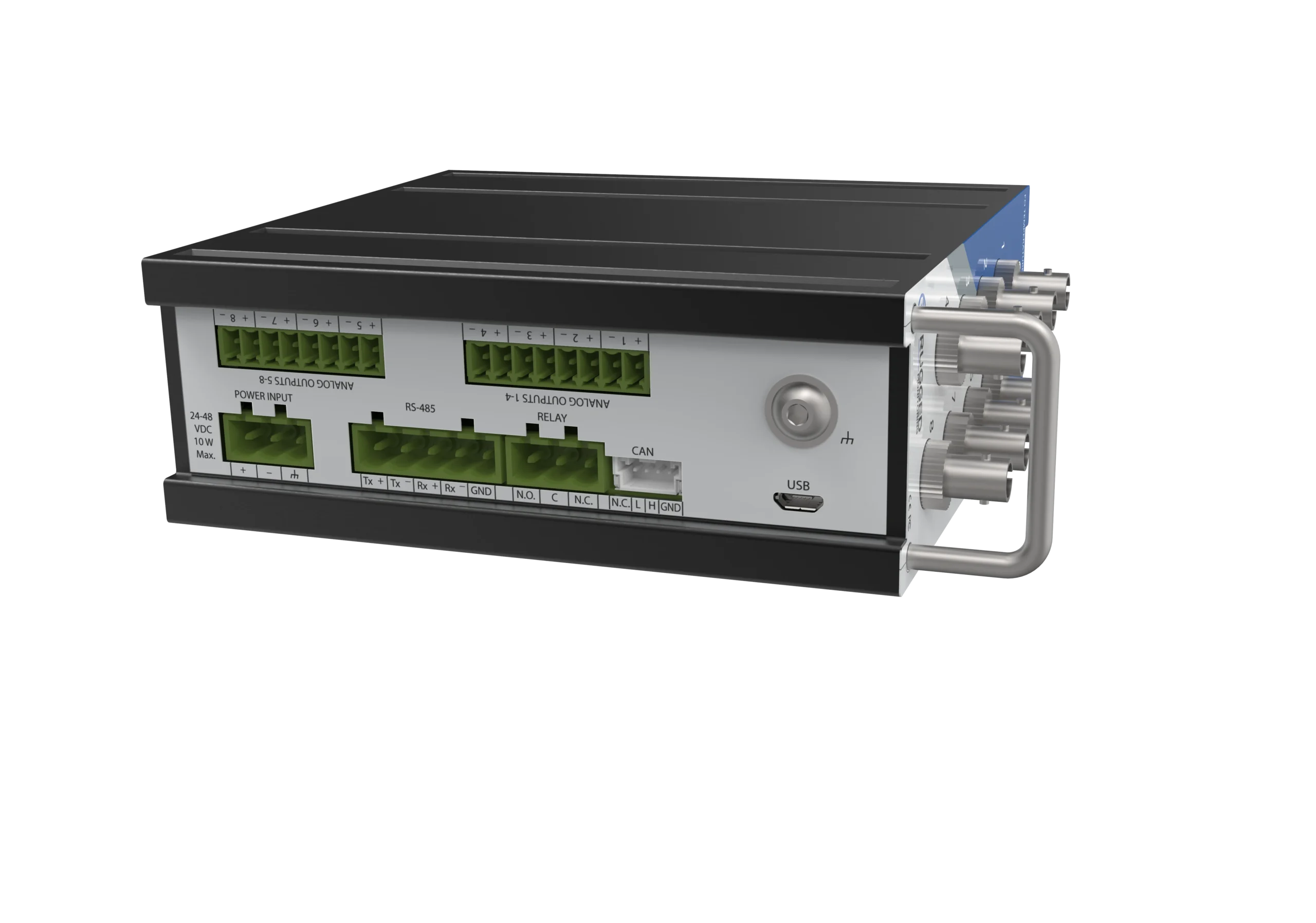

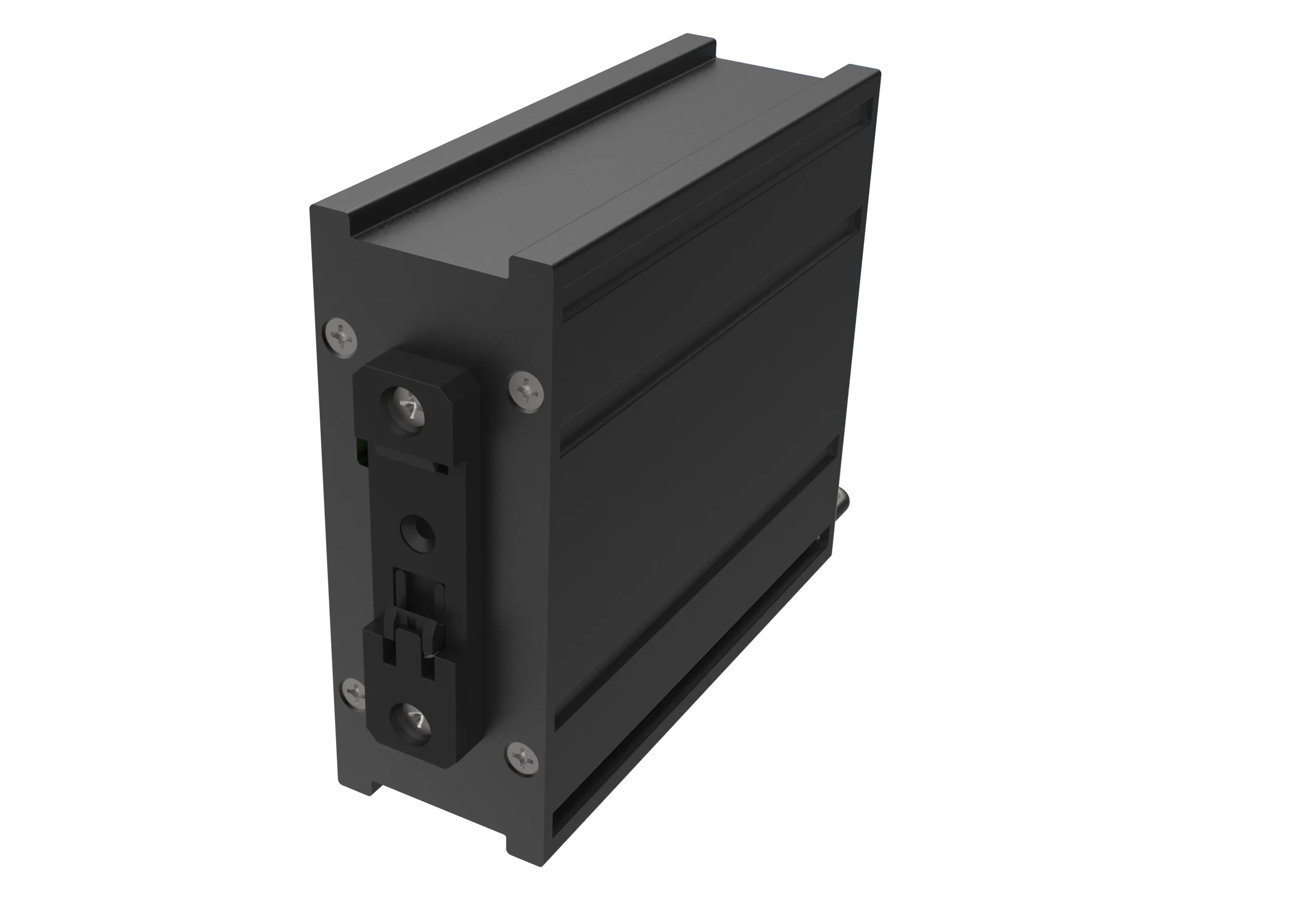

0201

Fiber Optic Edge Device

Advanced Fiber Optic Technology Meets Industry-Ready Reliability

The O201 is our versatile and robust fiber optic temperature edge device, purpose-built for industrial and laboratory applications that demand precision and reliability even in the most extreme environments.

Features
  • Multi-Channel Scalability
  • Plug-and-Play Operation
  • Exceptional Noise Immunity
  • Versatile Communication Interfaces
  • Customizable Software
Benefits
  • Perfect for OEM Applications
  • No Recalibration Required
  • Unmatched Stability
  • Durable Design
  • NIST-Calibrated Assurance
  • Seamless Integration
  • Advanced Analytics
Applications
  • Electric Vehicle and Battery Testing
  • Medical Equipment testing
  • Commercial Grade Microwave
  • Industrial process control and monitoring
  • Chemical and process Industries
  • Food and Beverage Processes
  • Wood drying industry
Technical specifications
Measurement Range

-271°C to +300 °C (cryogenic 4 °K range optional)

Measurement range (Optional Range extensions)

Down to 4 °K / Up to +300 °C

Resolution

0.1°C

Accuracy

±1.0 °C (+/- 0.2 °C in relative temperature)

Number of Channels

1 – 8 Channels

Logging

1 sec interval on USB / Micro SD card

Config port

USB (to use with Rugged connect windows software)

Max # of Channels

Expandable to 256 Channels, Daisy chain up to 32 units (with Modbus, Canbus)

Communication Ports

RS-485 (RS-232 optional converter) with Modbus, CANbus

Power

24 VDC

Memory

MicroSD external memory slot (up to 2 TB)

Analog output module

Fully configurable eight 0-10 V / 4-20 mA module (Optional)

Dimensions

4.72″ x 6.34″ x 1.89″
120 x 161 x 48 mm

Scan rate

200 ms / channel (Optional: Faster scanning rates available)

Operating temp

-40°C to 72°C

Storage temp

-40°C to 85°C

Humidity

95% Non-Condensing

Relay

System Fault relay (5A)

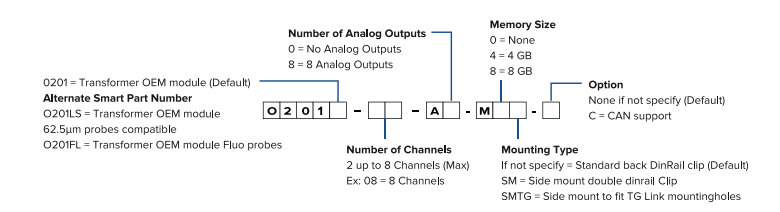

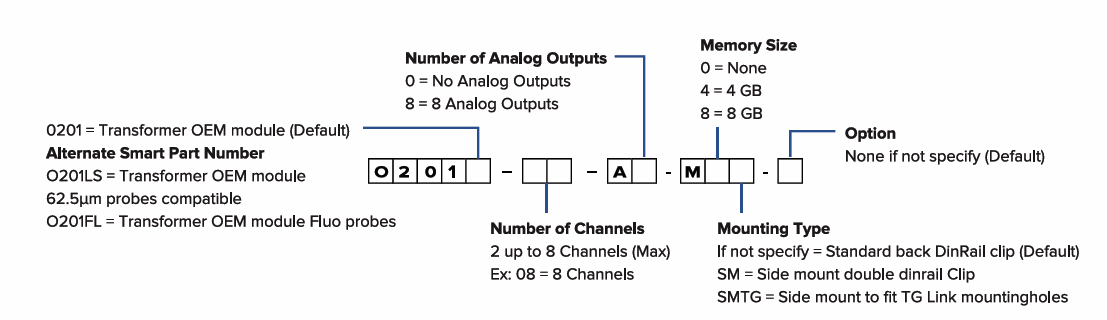

Ordering Code
